- Large setting range
- Small size
- Simple to mount
- High switching performance
Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.
Technical DataSwitch temperature difference
7K (± 4K tolerance)
Sensor element
thermostatic bimetal
Contact type
snap-action contact
Contact resistance
< 10mOhm
Service life
> 100 000 cycles
Max. switching capacity
250VAC, 10 (2) A
120VAC, 15 (2) A
DC 30W
EMC
acc. to EN 5
Connection
2-pole terminal, clamping torque 0.5Nm max.: rigid wire
Mounting
clip for
Casing
plastic according to UL94 V-0, light grey
Dimensions
60 x 33 x
Weight
approx.
Fitting position
variable
Operating/Storage temperature
-20 to +
Protection type
IP20
Setting range
Art. No. Contact maker (NO)
Approvals
0 to +
01141.0-00
VDE
-10 to +
01143.0-00
VDE
+20 to +
01158.0-00
VDE
+32 to +
01141.9-00
UL File No. E164102
+14 to +
01143.9-00
UL File No. E164102
0 to +
01147.9-00
UL File No. E164102

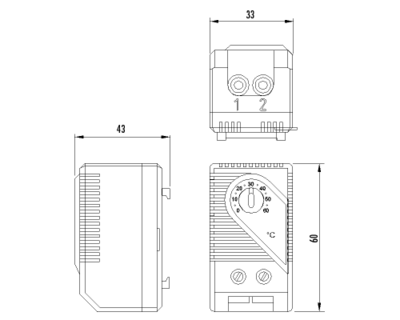

Technical Drawing
