APPLICATION

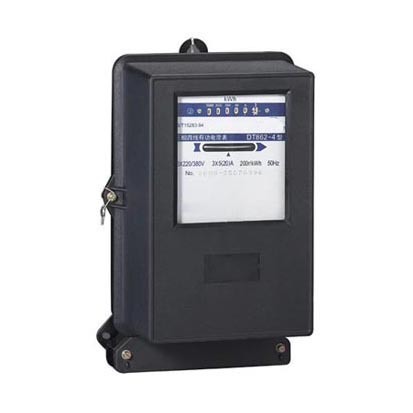

Three phase active ＆ reactive energy watt-hour meter are induction meters which are applicable to measure the rated frequency 50HZ ＆ the ative and reactive power loss of three-phas AC meshsork.All technique are completely conformed to National Standard GB/T 15283-94 idt IEC 60523-11.All technical targets of reactive energy meters are completely to National Standard GB/T 15283-94.
SPECIFICATIONS ＆ MODELS
Name
Type
Accuract(Class)
Rated Voltage(V)
Rated Current(A)
Connection Mode
Three-Phase four-wire
active energy
watt-hour meterDT862
2
3×220/380
3×1(2),3×3(6),
3×1.5(6)
Input throug CTDT864
1
3×5(20),3×10(40),3×15(60),
3×20(80),30×(100)
Directly input3×1(2),3×3(6),3×1.5(6)
Input throug CT
Three-Phase three-wire
active energy
watt-hour meterDS862
2
3×380
3×1(2),3×(6),3×1.5(6)
Input throug CT3×5(20),3×10(40),3×15(60),
3×20(80),3×30(100)
Input throug CT3×100
3×1(2),3×3(6),3×1.5(6)
Input throug CTDS864
1
3×380
3×1(2),3×3(6),3×1.5(6)
Input throug CT3×100
3×1(2),3×3(6),3×1.5(6)
Input throug CTName
Type
Accuract(Class)
Rated Voltage(V)
Rated Current(A)
Connection Mode
Three-Phase four-wire
reactive energy
watt-hour meterDX862
3
3×380
3×1(2),3×3(6),3×1.5(6)
Input throug CTDX864
2
3×100
3×1(2),3×3(6),3×1.5(6)
Input throug CT
