Application

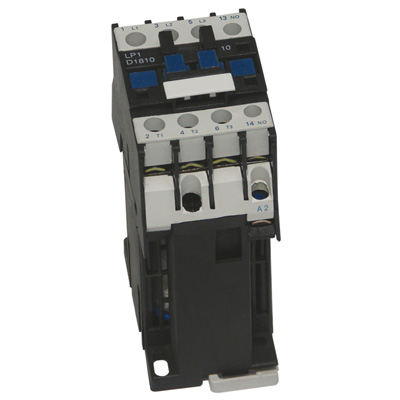

CJX2-Z(LP1-D) series DC operated AC contactor is suitable for use in the circuits up to rated voltage 660V AC 50HZ or 60HZ, and in rated current 9
It has specialties of equable & reliable action, quick while working.
Type |
Power |
Coil voltage | ||||
CJX2-09Z~95Z |
Direct |
24 |
48 |
110 |
220 |
380 |
Current |
BD |
ED |
FD |
MD |
QD |
Specification
Type | Rated working current A(AC-3,380V) | Controlled power | |||||
220V | 380V | 415V | 440V | 660V | |||
CJX2-09Z | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+NO |
CJX2-12Z | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | or |
CJX2-18Z | 18 | 4 | 7.5 | 9 | 9 | 9 | 3P+NC |
CJX2-25Z | 25 | 5.5 | 11 | 11 | 11 | 15 | |
CJX2-32Z | 32 | 7.5 | 15 | 15 | 15 | 18.5 | |
CJX2-40Z | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+NO +NC |
CJX2-50Z | 50 | 15 | 22 | 25 | 30 | 33 | |
CJX2-65Z | 65 | 18.5 | 30 | 37 | 37 | 37 | |
CJX2-80Z | 80 | 22 | 37 | 45 | 45 | 45 | |
CJX2-95Z | 95 | 25 | 45 | 45 | 45 | 45 |
