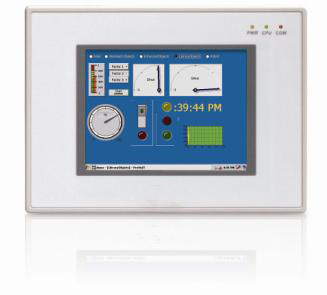

MT5320T
-
MT5320T ModelMT5320TMT5320T-DPMT5320T-CANMT5320T-MPI¡óPerformance specification¡óDisplay5.7" TFT£¨115.2¡Á86.4mm)Resolution320*240 pixelsColor65536 colorsBacklight1CCFLBrightness500cd/m2Backlight life50000 hr.Touch Panel4-wire precision resistance networkProcessor32-bit RISC CPU 520MHzMemory8M FLASH, 16M SDRAMRecipe memory & RTC512KB & RTCExpandable memorySD Card, U DiskPrinter portConnect a printer with a USB port via USB HOST port.Ethernet10/100 Base-TAudio interfaceNoneUSB hostA mouse, keyboard and printer, etc. which can be extended by USB port.Program download1 USB SLAVE portCOM portCOM0:RS232/RS485-2/RS485-4, COM1:RS232/RS485-2/RS485-4, COM2:RS232Video interfaceNoneCommunication module extendingNo supportPROFIBUS-DP expansion board supportedCANOPEN expansion board supportedMPI expansion board supported¡óElectrical specification¡óRated power7.2 WRated voltageDC24VInput rangeDC21¡«DC28VPower down allowed<3msInsulation resistanceGreater than 50M¦¸@ 500V DCDielectric strength test500 VAC 1 minute¡óStructure specification¡óShell colorLight-greyShell materialABSDimensions(mm)204.0¡Á150.0¡Á56.7 mmCutout size(mm)192¡Á138 mmWeight0.96kg¡óEnvironment specification¡óOperating temperature-10¡«70¡æOperating humidity10~90% non-condensingStorage temperature-30¡«80¡æStorage humidity10~90% non-condensingShockproof test10~25Hz (X, Y, Z direction, 2G, 30 minutes)Cooling methodNatural air cooling¡óCertification¡óDegree of protectionIP65 (front panel)CE certificationEN61000-6-2:2005 and EN61000-6-4:2007FCC compatibilityComplies with FCC Class A¡óOutline dimension¡ó
