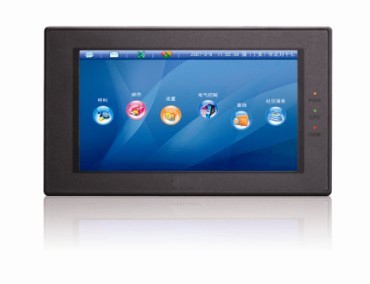

Model

MT4404TE

¡óPerformance specification¡ó

Display

7¡å16:9 TFT£¨152.4¡Á91.4mm£©

Resolution

800¡Á480

Color

65536 colors

Backlight

LED

Brightness

300 cd/m2

Backlight life

50000 hr.

Touch Panel

4-wire precision resistance network

Processor

32-bit RISC CPU 400MHz

Memory

8M FLASH + 16M SDRAM

Recipe memory & RTC

256KB & RTC

Printer port

1 DB25, Support SPRT SP-DN16PH, HP LaserJet P2014, EPSON LQ 305KT

Ethernet

Yes

Program download

1 USB SLAVE port

COM port

COM0:RS232/RS485-2/RS485-4,COM1:RS232/RS485-2/RS485-4, COM2:RS232

¡óElectrical specification¡ó

Rated power

8W

Rated voltage

DC24V

Input range

DC21¡«DC28V

Power down allowed

<5ms

Insulation resistance

Greater than 50M¦¸@ 500V DC

Dielectric strength test

500 VAC 1 minute

¡óStructure specification¡ó

Shell color

Black

Shell material

ABS

Dimensions(mm)

206.8¡Á124.2¡Á45.1mm

Cutout size(mm)

193.5¡Á112.5mm

Weight

0.7kg

¡óEnvironment specification¡ó

Operating temperature

-10¡«45¡æ

Operating humidity

10~90% non-condensing

Storage temperature

-20¡«60¡æ

Storage humidity

10~90% non-condensing

Shockproof test

10~25Hz (X, Y, Z direction, 2G, 30 minutes)

Cooling method

Natural air cooling

¡óCertification¡ó

Degree of protection

IP65 (front panel)

CE certification

EN61000-6-2:2005 and EN61000-6-4:2007

FCC compatibility

Complies with FCC Class A
