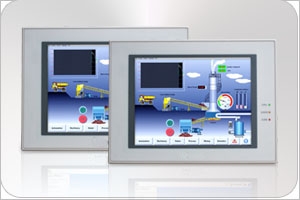

Model |
MT6300C |
MT6300C-CAN |
¡óPerformance specification¡ó |
Display |
5.6" TFT |
Resolution |
320*234 pixels |
Color |
65536 colors |
Backlight |
LED |
Brightness |
300cd/m2 |
Backlight life |
50000 hr. |
Touch Panel |
4-wire precision resistance network |
Processor |
32-bit RISC CPU 520MHz |
Memory |
32M FLASH, 64M SDRAM |
Recipe memory & RTC |
512KB & RTC |
Expandable memory |
SD Card, USB Stick |
Printer port |
Connect a printer with a USB port via USB HOST port. |
Ethernet |
10/100 Base-T |
Audio interface |
None |
Program download |
1 USB SLAVE port |
COM port |
COM0:RS232/RS485-2/RS485-4, COM1:RS232/RS485-2/RS485-4;COM2:RS232 |
Video interface |
N/A |
USB Host |
2 USB host ports for keyboard, mouse, printer, and etc. |
Communication extending |
None |
CANopen interface expansion board |
¡óElectrical specification¡ó |
Rated power |
7.2 W |
Rated voltage |
DC24V |
Input range |
DC21¡«DC28V |
Power down allowed |
<5ms |
Insulation resistance |
Greater than 50M¦¸@ 500V DC |
Dielectric strength test |
500 VAC 1 minute |
¡óStructure specification¡ó |
Shell color |
Light-grey |
Shell material |
ABS |
Dimensions(mm) |
204¡Á150¡Á56.7 mm |
Cutout size(mm) |
192.0¡Á138.0 mm |
Weight |
0.96kg |
¡óEnvironment specification¡ó |
Operating temperature |
0¡«45¡æ |
Operating humidity |
10~90% non-condensing |
Storage temperature |
-10¡«60¡æ |
Storage humidity |
10~90% non-condensing |
Shockproof test |
10~25Hz (X, Y, Z direction, 2G, 30 minutes) |
Cooling method |
Natural air cooling |
¡óCertification¡ó |
Degree of protection |
IP65 (front panel) |
CE certification |
EN61000-6-2:2005 and EN61000-6-4:2007 |
FCC compatibility |
Complies with FCC Class A |
¡óOutline dimension¡ó |
|
|
