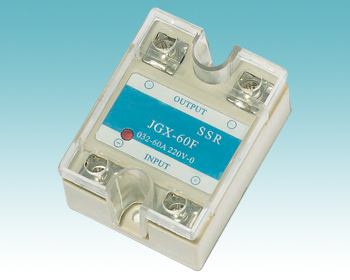

JGX-60F

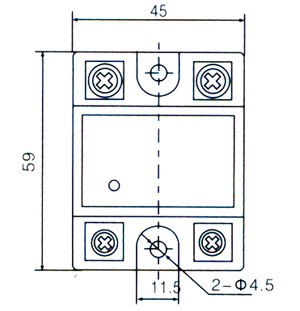

Size:59*45*25
On-off Time :1ms+Load current of 0.5 cycles following
Load current :60A
Load voltage:25-250VAC    H£º150V-450VAC
Output voltage drop:2.0Vmax
off Leakage Current:10MA  max  at 220VAC ;20mA max at 380VAC
Inulation resistance:100M¦¸ min.(at 500VAC)
Dielectric Strength:2000VAC 50Hz/lmin
Operating Temperature:-20¡æ-80¡æ(Non-condensing and freezing)
