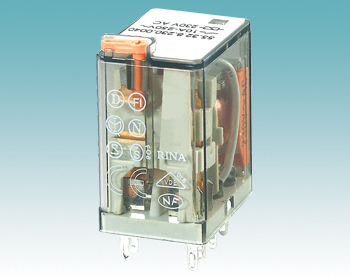

General-purpose Relay 55.32

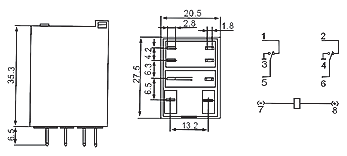

Structure:
Features:
Size mm ： 20.5×27.5×35.3
Terminal layout:2Z
Contact capacity :
Contact resistance:≤50mΩ
Insulation resistance :≥100MΩ
Dielectric strength:BOC 1000VAC/BCC 1500VACMain technical parameters:
Model
55.12
55.14
56.12
56.14
Coil rated voltage
DC 6V to 110V
DC 6V to 110V
DC 6V to 110V
DC 6V to 110V
AC 6V to 240V
AC 6V to 240V
AC 6V to 240V
AC 6V to 240V
Coil rated power
DC≤0.9W
DC≤0.9W
DC≤0.9W
DC≤0.9W
AC≤0.9VA TO 1.2VA
AC≤0.9VA TO 1.2VA
AC≤0.9VA TO 1.2VA
AC≤0.9VA TO 1.2VA
Electrical Life
105OPS
105OPS
105OPS
105OPS
Mechanical life
107OPS
107OPS
107OPS
107OPS
Operating temperature
Weight
≤
≤
≤
≤
Mounting methods
Printed Circuit board
Flange,outletPrinted Circuit board
Flange,outletPrinted Circuit board
Flange,outletPrinted Circuit board
Flange,outlet
