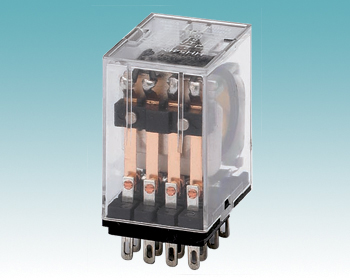

General-purpose Relay MY4
-

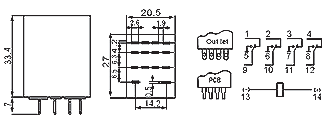

Structure:
Features:
Size mm ： 20.5×27×33.4
Terminal layout:4Z
Contact capacity:
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/BCC 1500VACMain technical parameters:
Model
MY2
MY3
MY4
HH52P
Coil rated voltage
DC 6 to 110V
DC 6 to 110V
DC 6 to 110V
DC 6 to 110V
AC 6 to 220V
AC 6 to 220V
AC 6 to 220V
AC 6 to 220V
Coil rated power
DC≤0.9W
DC≤0.9W
DC≤0.9W
DC≤0.9W
AC≤1.2VA
AC≤1.2VA
AC≤1.2VA
AC≤1.2VA
Electrical Life
105OPS
105OPS
105OPS
105OPS
Mechanical life
107OPS
107OPS
107OPS
107OPS
Operating temperature
Weight
≤
≤
≤
≤
Mounting methods
Printed Circuit board
Flange,outletPrinted Circuit board
Flange,outletPrinted Circuit board
Flange,outletPrinted Circuit board
Flange,outlet
