The case scenarios
JQX-10F-3C(JTX)
-
JQX

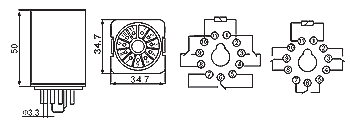

Size mm ： 34.7×34.7×50.5
Terminal layout:3Z/
Contact capacity:
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength :BOC 1000VAC/BCC 1500VACModel
MK-3P
JQX
JQX
FMK-2Z
Coil rated voltage
DC 6 to 110V
DC 6 to 110V
DC 6 to 110V
DC 6 to 110V
AC 6 to 220V
AC 6 to 240V
AC 6 to 220V
AC 6 to 220V
Coil rated power
DC≤2W
DC≤2W
DC≤2W
DC≤2.0W
AC≤3.5VA
AC≤3.5VA
AC≤3.5VA
AC≤3.5VA
Electrical Life
105OPS
105OPS
105OPS
105OPS
Mechanical life
107OPS
107OPS
107OPS
107OPS
Operating temperature
Weight
≤
≤
≤
≤
Mounting methods
outlet
outlet
outlet
outlet
