JQX-14FC-2Z

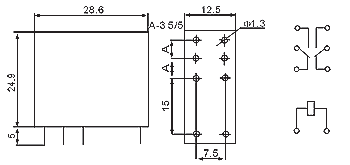

Size mm ： 28.6×12.5×24.9
Terminal layou:2Z、2H、2D
Contact capacity ：
Contact resistance：≤50mΩ
Insulation resistance:≥1000MΩ
Dielectric strength :BOC 1000VAC/BCC 1500VACMain technical parameters:
Model
HH53P
HH54P
JQX-14FC-1Z
JQX-14FC-1Z(
Coil rated voltage
DC 6 to 110V
DC 6 to 110V
DC 6 to 110V
DC 6 to 110V
AC 6 to 220V
AC 6 to 240V
AC 6 to 220V
AC 6 to 220V
Coil rated power
DC≤0.9W
DC≤0.9W
DC≤0.9W-1.5W
DC≤0.9W-1.5W
AC≤1.2VA
AC≤0.9 to 1.2VA
AC≤1.2 to 2.5VA
AC≤1.2 to 2.5VA
Electrical Life
105OPS
105OPS
105OPS
105OPS
Mechanical life
107OPS
107OPS
107OPS
107OPS
Operating temperature
Weight
≤
≤
≤
≤
Mounting methods
Printed Circuit board
Flange,outletPrinted Circuit board
Flange,outletPrinted Circuit board
Flange,outletPrinted Circuit board
Flange,outlet
