The case scenarios
JQX-14FF-2Z
-
JQX-14FF-2Z

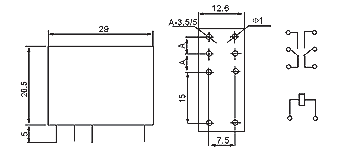

Size mm ： 29×12.6×20.5
Terminal layout::2Z、2H、2D
Contact capacity :
Contact resistance :≤50mΩ
Insulation resistance:≥1000MΩ
Dielectric strength:BOC 1000VAC/BCC 1500VACModel
JQX-14FC-2Z
JQX-14FF-1Z
JQX-14FF-2Z
MK-2P
Coil rated voltage
DC 3 to 110V
DC 3 to 110V
DC 3 to 110V
DC 6 to 110V
AC 6 to 220V
AC 6 to 240V
AC 6 to 220V
AC 6 to 220V
Coil rated power
DC≤0.53W
DC≤0.53W
DC≤0.53W
DC≤2W
AC≤0.9VA
AC≤0.9VA
AC≤3.5VA
Electrical Life
105OPS
105OPS
105OPS
105OPS
Mechanical life
107OPS
107OPS
107OPS
107OPS
Operating temperature
Weight
≤
≤
≤
≤
Mounting methods
Printed Circuit board
Printed Circuit board
Printed Circuit board
outlet
