The case scenarios

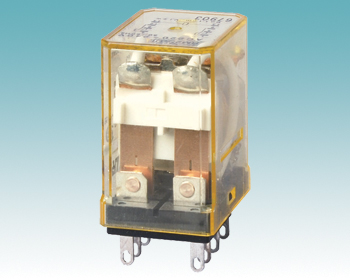

RM2S-U
-
RM2S-U

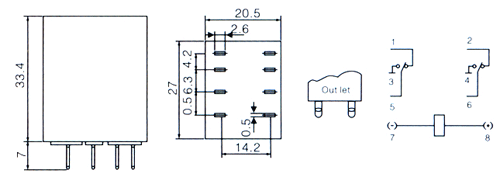

Size(mm): 20.5×27×33.4
Tirminal layout: 2Z
Contact capacity:
Contact resistance: ≤50mΩ
Inulation resistance: ≥100MΩ
Dielectric strength: BOC 1000VAC/BCC 1500VACModel
RY4S-U
RM2S-U-U
RH2B-U
RH4B-U
Coil nominal voltage
DC 6 to 220V
DC 6 to 220V
DC 6 to 220V
DC 6 to 220V
AC 6 to 380V
AC 6 to 380V
AC 6 to 380V
AC 6 to 380V
Coil nominal power
DC≤0.9W
DC≤0.9W
DC≤0.9W
DC≤1.5W
AC≤1.2VA
AC≤1.2VA
AC≤1.2VA
AC≤2.5VA
Electrical life
105OPS
105OPS
105OPS
105OPS
Mechanical life
107OPS
107OPS
107OPS
107OPS
Operating temperature
Weight
≤
≤
≤
≤
Mounting methods
Flange/Outlet
Flange/Outlet
Flange/Outlet
Flange/Outlet
