- Large setting range
- Small size
- Simple to mount
- High switching performance
Thermostat (normally closed); contact breaker for regulating heaters.
Technical Data
Switch temperature difference |
7K (± 4K tolerance) |
Sensor element |
thermostatic bimetal |
Contact type |
snap-action contact |
Contact resistance |
< 10mOhm |
Service life |
> 100 000 cycles |
Max. switching capacity |
250VAC, 10 (2) A |
|
120VAC, 15 (2) A |
|
DC 30W |
EMC |
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
Connection |
2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |
Mounting |
clip for 35mm DIN rail, EN50022 (or for exit filter EF 118 Series) |
Casing |
plastic according to UL94 V-0, light grey |
Dimensions |
60 x 33 x 43mm |
Weight |
approx. 40g |
Fitting position |
variable |
Operating/Storage temperature |
-20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F) |
Protection type |
IP20 |
Setting range |
Art. No. Contact breaker (NC) |
Approvals |
0 to +60°C |
01140.0-00 |
VDE |
-10 to +50°C |
01142.0-00 |
VDE |
+20 to +80°C |
01159.0-00 |
VDE |
+32 to +140°F |
01140.9-00 |
UL File No. E164102 |
+14 to +122°F |
01142.9-00 |
UL File No. E164102 |
0 to +60°C |
01146.9-00 |
UL File No. E164102 |

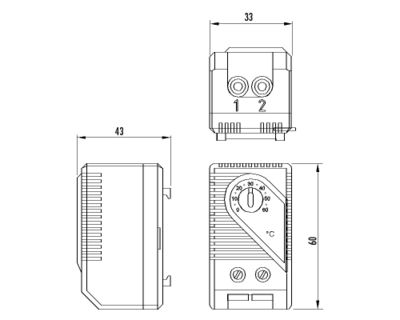

Technical Drawing
|
